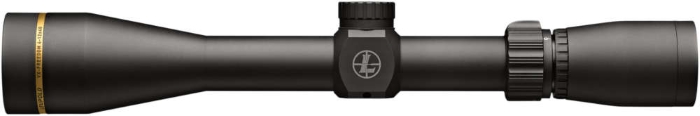

 Leupold VX-Freedom 4-12x40

Leupold® VX-Freedom™ 4-12x40mm (1 inch) Matte Black Riflescope NZ$747 (incl. GST)
Reticle: Colour: Quantity:

Model # 174665 - Tri-MOA Reticle

A new generation of shooters deserves a new riflescope. With the VX®-Freedom™ you get best-in-class optics and unbeatable accuracy. It’s also everything you expect from a Leupold: designed, machined, and assembled in our Oregon factory, tested to the same ruggedness standards as our top-tier riflescopes, and guaranteed for a lifetime of performance.

The new VX-Freedom defines what a rifle scope should be: reliable, accurate, and extremely clear and bright. We’ve taken decades of American manufacturing combined with unbeatable optical performance and rolled it in to a scope that is guaranteed to get the job done every time.

With a host of new features, the VX-Freedom lets you unleash your rimfire, dominate from your tree stand, or stretch across an open draw with all the confidence in the world.


* Model # 174665 - Tri-MOA Reticle
* Magnification: 4 - 12x
* Objective Lens Diameter: 40mm
* Finish/Colour: Matte Black
* Adjustment Click Value: 0.25 MOA
* Weight: 13.1 oz / 371 g
* Linear Field of View (ft/100 yd): 21.5 ft (Low) to 10.0 ft (High)
* Linear Field of View (m/100 m): 7.17 m (Low) to 3.32 m (High)
* Eye Relief (in): 4.92 in (Low) to 3.74 in (High)
* Eye Relief (mm): 125 mm (Low) to 95 mm (High)
* Elevation Adjustment Range (MOA): 80
* Elevation Adjustment Range (MIL): 23.3
* Windage Adjustment Range (MOA): 80
* Windage Adjustment Range (MIL): 23.3
* Exit Pupil (mm): 3.4 mm (High)
* Length: 12.17 in / 30.9 cm
* Tube Length/Mounting Space: 5.16 in / 13.1 cm
* Eyepiece Length: 3.50 in
* Objective Length: 3.51 in
* Objective Diameter: 1.83 in
* Eyepiece Diameter: 1.56 in
* Tube Diameter: 1 in / 25.4 mm


Features of the Leupold® VX-Freedom™ 4-12x40mm Riflescope
3:1 Zoom Ratio

A versatile 3:1 zoom ratio erector system that is ideal for virtually any situation.
  1/4 MOA Finger Click

1/4 MOA precision finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of extreme use.
Waterproof & Fogproof

Absolute waterproof and fogproof integrity:  ready for a lifetime in the field, in all conditions.
  One inch Maintube

Durable and compact, the one-inch maintube is lightweight and fits more legacy rings.
6061-T6 Aircraft Quality Aluminum

Crafted from 6061-T6 aircraft quality aluminum.
  Scratch Resistant Lenses

Outer lens surfaces are scratch resistant to military standard extreme abrasion specification.
Twilight Light Management System
Reticles for the Leupold® VX-Freedom™ 4-12x40mm Riflescope

Tri-MOA Reticle

Tri-MOA Reticle Features:
* Proprietary Leupold Design
* Based of the T-MOA reticle
* Provided hash-marks in 1 MOA increments
* Features 10 MOA of measurment in each direction
* 5 MOA hash is wider for quick reference
* Upper portion is left open for easier spotting
* Non-caliber specific

More Pictures of the Leupold® VX-Freedom™ 4-12x40mm Riflescope
