 Leupold VX-5HD 1-5x24

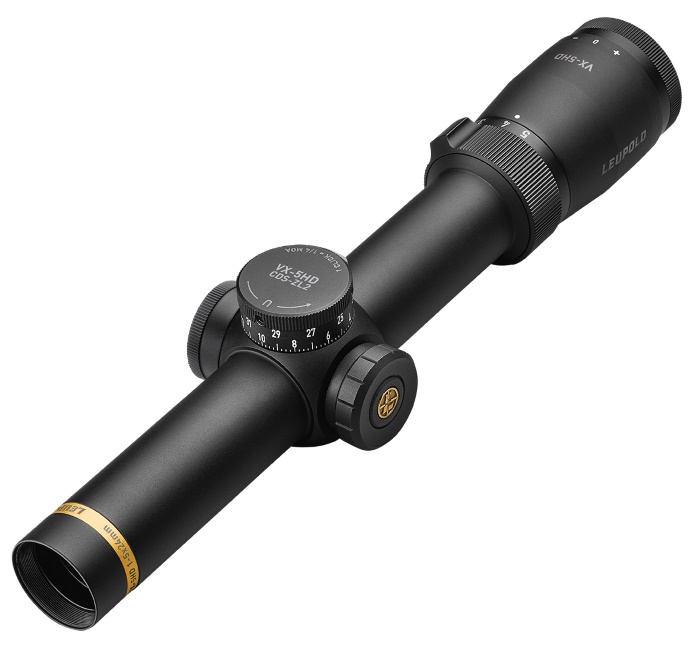

Leupold® VX-5HD™ 1-5x24mm CDS-ZL2 (30mm) Matte Riflescope NZ$1630 (incl. GST)
Reticle: Colour: Quantity:

Model # 172367 - FireDot Duplex

The VX-5HD is taking optical performance to a whole new level. We gave it a High-Definition optical system for sharpened clarity, and the Twilight Max™ Light Management System for even greater low-light performance, giving hunters a visible advantage at dawn and dusk when the biggest game is on the move. The new CDS-ZL2 (Custom Dial System ZeroLock 2) elevation dial locks in place so it cannot be inadvertently rotated off zero. A mere press of a button will allow the user to dial up two turns of elevation, if necessary. On the 2nd revolution of the elevation dial, the button sinks in to show you are on the 2nd turn so you can dial for extended ranges and never lose your place. The covered pop-up windage dial provides fast and accurate sight-in and easy rezero. All VX-5HD CDS-ZL2 riflescopes include one free Custom Ballistic Dial with purchase. FireDot illuminated reticles provide daylight bright, red dot-like performance with an easy to use 1 button intensity adjustment.



* Actual Magnification: 1.0x (low) to 5.0x (high)
* Linear Field of View (ft/100 yd): 114.6 ft (low) to 22.5 ft (high)
* Linear Field of View (m/100 m): 38.2 m (low) to 7.5 m (high)
* Eye Relief (in): 3.80 in (low) to 3.80 in (high)
* Eye Relief (mm): 97.0 mm (low) to 97.0 mm (high)
* Weight: 13.1 oz / 371.0 g
* Objective Clear Aperture: 0.9 in / 24.0 mm
* Elevation Adjective Range (MOA): 170.0
* Windage Adjective Range (MOA): 170.0
* Length:
11.2 in
* Tube Length: 7.4 in
* Eyepiece Length: 3.3 in
* Objective Length: 1.2 in
* Objective Diameter: 1.2 in
* Eyepiece Diameter: 1.8 in
* Tube Diameter: 1.18 in

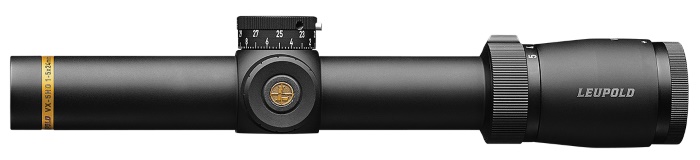

Straight View of the Leupold® VX-5HD™ 1-5x24mm CDS-ZL2 Riflescope

Reticles for the Leupold® VX-5HD™ 1-5x24mm CDS-ZL2™ Riflescope
Illuminated FireDot Reticle
Takes the legendary Leupold designed Duplex reticle and adds an extra-bright center point dot. Ideal for quick target acquisition and the broadest range of game applications.
Features of the Leupold® VX-5HD 1-5x24mm CDS-ZL2™ Riflescope

High Definition

Look for extremely vivid color, life-like clarity, and higher overall performance thanks to the calcium-fluoride lenses. Another added advantage of these non-lead based lenses is that they’re lighter in weight.

CDS Custom Dial System

Leupold CDS™ models allow you to quickly dial your elevation to different sight-in ranges with a custom adjustment matched to your specific ballistics information. The CDS dials change out easily, allowing you flexibility with different loads, conditions and calibers. Every CDS dial features ¼-MOA click or 1 cm click (metric versions), finger adjustments and no adjustment covers to lose, making the VX-2, VX-3, VX-6 and VX-R even more accurate and rugged. How the CDS™ System Works The CDS System works by laser-inscribing your scope's elevation dial to match your load, velocity and conditions. Your scope will be in perfect synch with the way your rifle and load shoots, even for hand loads. Each CDS dial is unique, taking all practical ballistic and environmental factors into account:


Twilight Max Light Management System

Light management means delivering usable light to your eye and forming a crisp, high contrasting image. Lens coatings are applied that maximize light transmission in blue colors, since your eye is more sensitive to blue in low light. Red colors are also maximized, since they dominate scenes in typical hunting situations and finally the balancing colors to develop the highest possible contrast. Glare is controlled with special mechanical structures. The end result, you can see antler tines in dark shadows long after the competition has gone home.


Pop-Up Rezero Adjustments

Pop-up re-zero finger click windage and elevation adjustments assure maximum adjustment range, precision and insant re-zeroing. The adjustment dials can be repositioned to align with the marked zero indicator of the adjustment without changing the adjustment setting of the scope. This allows the shooter to know the original zero of the rifle in the event that further adjustments are made in the field. To reset the zero simply lift the dial and rotate it until the "0" on the dial is aligned with the zero indicator.


Extreme Fast-Focus Eyepiece

The extreme fast-focus eyepiece ensures a generous eyebox, superior field of view and optimal diopter adjustment in the field. It allows the the user to adjust through the full range of diopter adjustment in one complete turn of the eyepiece.


Guard-Ion - Rain shedding coating

Water, dirt and fingerprint shedding lens coating. Extremely durable and scratch resistant.


Blackened Lens Edges

Blackened lens edges reduce unwanted glare and diffusion through the lens edges to provide better resolution, improved contrast and superior optical perrformance.


1/4 MOA Finger Click

Finger click adjustments for windage and elevation (¼-MOA) offer absolute repeatability and dependability over a lifetime of extreme use (metric adjustments – 1 cm per click).

30mm Maintube
100% Waterproof and Fog Proof
