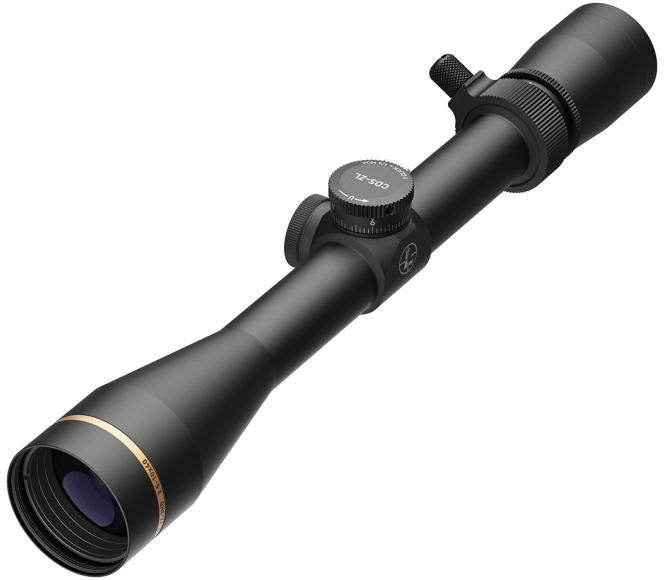

Leupold® VX-3HD™ 3.5-10x40mm (1 inch) CDS-ZL Matte Black Riflescope - Duplex Reticle NZ$1,108 (incl. GST)
The Leupold VX®-3HD 3.5-10x40mm Riflescope delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. Its versatile magnification can get the job done in almost any scenario.
These variable power riflescopes are a versatile powerhouse on the hunting grounds that will improve your precision and performance when shooting your rifle. Leupold crafted these Riflescopes with exclusive technologies like their DiamondCoat 2 lens coatings and Xtended Twilight Lens System that reveal all the details of nature even in low-light environments. The Leupold VX-3HD 3.5-10x40 Riflescope also has blackened lens edges that bring more usable light to your eye for a brighter sight picture. 6061-T6 aluminum construction and waterproof and fogproof performance make this VX scope one of the toughest in its class, and you can take on exciting hunts in rain, fog, and other poor weather conditions. There are also included lens covers to protect your glass while not in use. The generous eye relief of these scopes enhance your comfort during all-day hunts, and the 3:1 zoom ratio is perfect for a wide range of scenarios. Improve your shooting skills on the hunting grounds by mounting this 3.5-10x40 hunting scope onto your favorite rifle.
The Leupold VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.
Everything Leupold put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life. |
|
Specifications:
* Model # 180617 - Duplex Reticle
* Magnification: 3.5 - 10x
* Objective Lens Diameter: 40mm
* Finish/Colour: Matte Black
* Reticle Focal Plane: Second Focal Plane
* Elevation Adjustment Type: CDS-ZL
* Rezero Type: Set Screw
* Windage Adjustment Type: Finger Click
* Light Management System: Elite Optical System
* Weight: 13.5 oz
* Linear Field of View (ft/100 yd): 29 ft (Low) to 11 ft (High)
* Angular Field of View: 5.5° (Low) to 2.1° m (High)
* Eye Relief (in): 4.4 in (Low) to 3.6 in (High)
* Fixed Parallax-Free Distance: 150 yd
* Elevation Adjustment Value per Click: 1/4 MOA
* Elevation Adjustment Range (MOA): 55
* Elevation Adjustment Range (MIL): 16
* Elevation Adjustment Range (cm @ 100m): 160
* Elevation Adjustment Per Revolution: 15 MOA
* Windage Adjustment Value per Click: 1/4 MOA
* Windage Adjustment Range (MOA): 55
* Windage Adjustment Range (MIL): 16
* Windage Adjustment Range (cm @ 100m): 160
* Windage Adjustment Per Revolution: 15 MOA
* Length: 12.67 in
* Tube Length/Mounting Space: 5.96 in
* Eyepiece Length: 3.08 in
* Objective Length: 3.63 in
* Objective Diameter: 1.83 in
* Eyepiece Diameter: 1.56 in
* Tube Diameter: 1 in
|
| |
|
|
Features of the Leupold® VX-3HD™ 3.5-10x40mm (1 inch) CDS-ZL Riflescope |
| |
|
|
DiamondCoat 2™
Exterior lens surfaces are treated with DiamondCoat 2™, an ion-assist lens coating, for higher light transmission and the greatest level of abrasion resistance Leupold have ever offered. DiamondCoat 2™ has the additional advantage of assisting in light transmission, for greater brightness, clarity and contrast, and will prove its worth in the wildest places on earth. |
|
3:1 Zoom Ratio
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots. |
| |
|
|
Waterproof, Fogproof & Shookproof
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life. |
|
Second Focal Plane
In Second Focal Plane (rear focal plane) scopes, the reticle stays the same size while the target grows and shrinks when you adjust the magnification. These reticles are ideal for lowlight hunting situations and in scopes that don't utilize hash marks for range estimation. |
| |
|
|
Custom Dial System®
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on. |
|
Xtended Twilight Lens System
The Xtended Twilight Lens System optimizes the transmission of low-light wavelengths, so you see the details of low-light scenes in greater, brighter detail than with any other scope available. |
| |
|
|
Zero Lock® Dial
The ZeroLock® system eliminates accidental dial movement by locking it in place. |
|
Lockable Eyepiece
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye. |
| |
|
|
Blackened Lens Edges
Blackened lens edges reduce light diffusion, so more usable light reaches the shooter's eye. This results in a brighter image with increased contrast.
|
|
Scratch Resistant Lenses
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection. |
| |
|
|
Lightweight Aluminum Housing
Aluminum offers excellent durability and ruggedness without adding unnecessary weight. |
|
One inch Maintube
Durable and compact, the one-inch maintube is lightweight and fits more legacy rings. |
| |
|
|
Reversible Throw Lever
This reversible throw lever easily clamps onto specific power-selector rings. Its large surface area makes it ideal for quick magnification changes. |
|
|
| |
|
|
Reticle for the Leupold® VX-3HD™ 3.5-10x40mm (1 inch) CDS-ZL Riflescope |
| |
|
|
Duplex Reticle
Duplex Reticle Features:
* Invented in 1962 by Leupold
*
Defined by heavy posts
*
Stands out against cover in low light
*
Quick target acquisition with thin lines at the center
*
Most popular reticle in the world
*
Rear (second) focal plane |
| |
|
|

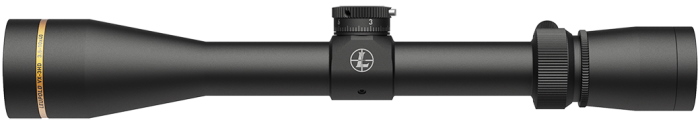

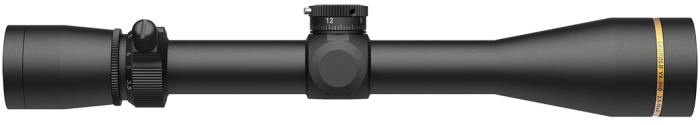

More Pictures of the Leupold® VX-3HD™ 3.5-10x40mm (1 inch) CDS-ZL Riflescope |
| |
|
|
|
| |
|
| |
|
| |
|
| |
|
