 Leupold VX-6HD 4-24x52

Leupold® VX-6HD™ 4-24x52mm (34mm) CDS-TZL3 Side Focus Dial Matte Black Riflescope - illum. T-MOA and Impact-23 MOA Reticles NZ$4,033 (incl. GST)
Reticle: Colour: Quantity:

Model # 179292 - illuminated T-MOA Reticle
Model # 179293 - illuminated Impact-23 MOA Reticle

* 2nd Generation Argon/Krypton Waterproofing
* 34mm Maintube
* Side Focus Parallax
* 6:1 Zoom Ratio
* Blackened Lens Edges
* CDS Custom Dial System
* Electronic Reticle Level
* Extended Battery Life
* Extreme Fast-Focus Eyepiece
* FireDot Illumination
* Generous Eyebox

* Guard-Ion Rain Shedding Coating
* Ballistic Aiming System
* Motion Sensor Technology
* Push Button Illumination
* Reversible Throw Lever
* Twilight Max Light Management System
* Twin Bias Spring Erector System
* Zero Lock Windage Adjustment

* Lead Free

Whether you’re in the wilderness or at the range, you never know what distance an opportunity might present itself. This is where the VX-6HD 4-24x52mm can come in handy. Having the ability to walk around on four power, knowing you can go all the way up to 24x magnification at a moment’s notice gives you the flexibility to dominate almost any hunting or shooting situation. And its 34mm maintube gives you enough travel to take advantage of that extra power.


The 4-24’s edge-to-edge clarity gives you outstanding brightness, color consistency, and resolution. This means dominating the first and last 15 minutes of the day. The wide zoom range and our latest technology, which includes an in-scope electronic reticle level, CDS-ZL3 Zero Lock elevation dial, and removable throw lever, make your VX-6HD the most versatile Leupold riflescope ever made. The VX-6HD goes where other scopes can’t. Its unique combination of features, durability, and elite optical performance guarantees that it can handle any challenge you throw at it. We built if for anything and everything, including your next epic adventure.

* Magnification: 4 - 24x
* Objective Lens Diameter: 52mm
* Finish/Colour: Matte Black
* Dial System: Zero Lock 2 turn 1/4 MOA Dial System
* Weight: 25.9 oz / 734 g
* Linear Field of View (ft/100 yd): 28.1 ft (Low) to 4.8 ft (High)
* Linear Field of View (m/100 m): 9.30 m (Low) to 1.70 m (High)
* Eye Relief (in): 3.70 in (Low) to 3.70 in (High)
* Eye Relief (mm): 93.90 mm (Low) to 93.90 mm (High)
* Objective Diameter (in): 2.40 in
* Elevation Adjustment Range (MOA): 75
* Windage Adjustment Range (MOA): 75
* Length: 14.65 in / 37.2 cm
* Tube Length/Mounting Space: 6.22 in / 15.80 cm
* Eyepiece Length: 3.3 in
* Objective Length: 5.2 in
* Objective Diameter: 2.4 in
* Eyepiece Diameter: 1.8 in
* Tube Diameter: 1.33 in / 34 mm

More Information on the Leupold® VX-6HD™ Riflescopes
2nd Generation Argon/Krypton Waterproofing

Features Leupold's exclusive, proprietary Argon/Krypton gas blend, which nearly eliminates the effects of thermal shock, and reduces the diffusion of gases sealed inside your scope even more than Leupold's proven nitrogen technology already does.
  6:1 Zoom Ratio

A powerful 6:1 zoom ratio delivers crystal clear images from edge-to-edge throughout the entire magnification range, and the Twin Bias Spring Erector System features berylium/copper alloy leaf springs and 30% more holding force to withstand the most intense recoil and abuse.

Electronic Reticle Level

Shoot your VX-6HD more accurately at longer distances by using the easy-to-use Electronic Reticle Level. Activate the level by holding down the illumination push button for 15 seconds, and repeat to deactivate. The level feature also temporarily deactivates illumination when you rotate the scope over 30 degrees, so you can lay the rifle on its side to save battery power.


Side Focus

Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.

Generous Eyebox

Get on target faster so you can take the shot of a lifetime. Even at higher powers, the longer eye relief and generous eyebox provides incredible head position latitude, edge-to-edge brightness, and a full clear sight picture that fills the eyepiece completely.
  FireDot Illumination

Our powered fiber optic reticle technology provides the perfect blend of daylight illumination and optimal light transmission and contrast for low light hunting situations.

Twin Bias Spring Erector System

The twin bias spring exerts up to 30 percent more holding force on the erector, virtually eliminating erector system backlash and stress on the vital internal workings of the scope, for longer life.


MST (Motion Sensor Technology)

Proprietary MST (Motion Sensor Technology) automatically deactivates illumination after 5 minutes of inactivity, yet reactivates instantly as soon as any movement is detected.


34mm Maintube

A 34mm maintube produces unparalleled windage and elevation adjustment travel.


Guard-Ion Rain Shedding Coating

Our Guard-Ion rain shedding coating is extremely durable, scratch resistant, and sheds water, dirt, and fingerprints.


Reversible Throw Lever

The reversable throw lever clamps onto VX-6HD power selector to provide leverage for fast magnification changes, left or right handed.


Alumina Flipback Lens Covers Included

Includes our high-quality Alumina® flip-back lens covers.


Zero Lock Windage Adjustment

ZeroLock prevents unintended adjustments and ensures an accurate return to zero.  Fast and easy to use.

  Scratch Resistant Lenses

Outer lens surfaces are scratch resistant to military standard extreme abrasion specification.

Twilight Max HD Light Management System

Resolve finer details at longer ranges in the widest range of weather and lighting conditions throughout the day.  Engineered to be the industry standard of performance, the Twilight Max HD Light Management System combines exceptional light transmission and glare management to provice vivid, bright, high contrast images from dawn until dusk.


BAS (Ballistic Aiming System)

Select models are available with the Leupold® Ballistics Aiming System™. With multiple aiming points for longer ranges and varying wind speeds, and infinite power selector settings to match your rifle’s ballistics, the Ballistics Aiming System™ can help you master the art of accurate, long-range shooting.


Push Button Illumination

One button brightness control with a high/low indicator keeps it simple.

  6061-T6 Aircraft Quality Aluminum

Crafted from 6061-T6 aircraft quality aluminum.
Reticles for this Leupold® VX-6HD™ 4-24x52mm Riflescope

T-MOA (Illuminated) Reticle

T-MOA (Illuminated) Reticle Features:
* Builds on the Leupold's Wind-Plex Reticle.
* Aides in compensating for crosswinds and provides vertical holdovers for bullet drop compensation.
* Hash marks are in 1 MOA (minute of angle) increments.
* Marks extend to 10 MOA on each side.
* Red illuminated center section for great contrast in low-light conditions.
* 1 MOA is approximately 1 inch at 100 yards
* Non-caliber specific.


Impact-23 MOA (Illuminated) Reticle

Impact-23 MOA (Illuminated) Reticle Features:
* Patented Leupold design.
* Incorporates the MOA (minute of angle) measurement system, with a grid style pattern.
* Features 1 MOA hash marks on horizontal and vertical posts.
* Wind hold dots are spaced 2 MOA apart.
* Every fourth line is numbered with the MOA value for quick reference points.
* Vertical grid extends down to 23 MOA.
* Makes initial and follow up shots straightforward with a large number of well defined aiming points.
* Red illumination for contrast in low-light situations.
* 1 MOA is approximately 1 inch at 100 yards.
* Intended to be used on highest magnification in a rear or 2nd focal plane scope.

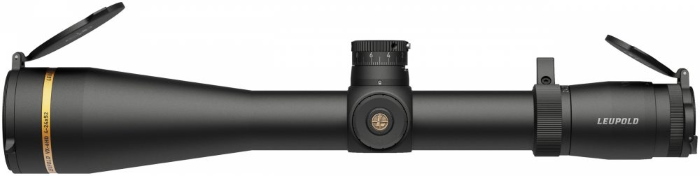

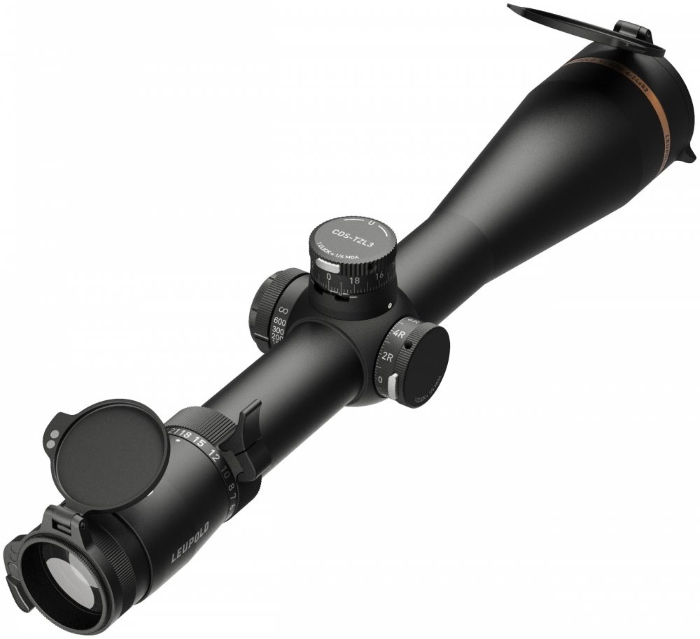

More Pictures of the Leupold® VX-6HD™ 4-24x52mm CDS-TZL3 Riflescope
