 RCBS Full Length 2-Die Set



RCBS® Full Length 2-Die Set - Popular Rifle Cartridges NZ$125 Each Set (incl. GST)
Cartridge Size: Quantity:

RCBS has been making some of the best reloading equipment for over 60 years. Their 2-Die sets are known in many reloading circles for their high-quality. Each 2-Die Set includes a full length sizer die has an expander-decapping unit to remove the spent primer while expanding the case mouth. Vent holes prevent case damage caused by trapped air or excessive lubricant. The seater die includes a bullet seater plug and built-in roll or taper crimp as appropriate for the particular cartridge. Full length 2-die sets are the basic building block of the reloading process. Many shooters wear out multiple barrels or rifles using just one full length reloading die set. We recommend that new reloaders start with a full length die set and learn how to set the dies up correctly before they jump in to other types of reloading dies. NB: Shellholders sold separately.

Features:

* Made from case hardened steel
* Precision-drilled and reamed to the same exacting standards as the finest gun mechanisms
* Full-Length Sizer Dies for bottleneck cases have vents to prevent case damage
* Properly hardened and hand polished
* Large, easy-to-adjust hex lock rings utilize hex head setscrews

Rifle Cartridge Sizes Available:

* Model # 10201 - .22 Hornet
* Model # 11101 - .223 Remington
* Model # 12801 - .260 Remington
* Model # 13201 - 6.5mm x 55 Swedish Mauser
* Model # 13501 - .270 Winchester
* Model # 13901 - 7mm-08 Remington
* Model # 15501 - .308 Winchester
* Model # 14801 - .30-06 Springfield



Using the RCBS Full Length 2-Die Set Press:

This two-die set is intended for reloading bottleneck cases, and consists of a Full-Length Sizer Die with an Expander-Decapping Unit, and a Seater Die with Bullet Seater Plug. The Full-Length Sizer Die brings the case to SAAMI minimum cartridge dimensions. It sizes the outside of the case, de-primes and expands the neck to accept the bullet.

The die has vents to prevent case damage caused by trapped air and for excessive lubricant. Headspace is held to minimum tolerances to avoid changing the case body length during full length sizing. The included Seater Die has a built-in roll crimper to secure the bullet at the same time as it’s seated.

Full length die sets are for bottleneck rifle and pistol cases, and they include a full length sizing die and a seater die. The full length die will bump the shoulder of the case to extent the die is adjusted up or down in the press. We suggest using a cartridge headspace gage tool to get the correct shoulder bump.

The full length die also sizes the body of the case so it will chamber easily for the next firing, then the die decaps the spent primer. The expander ball passes through the neck of the case and sizes the neck to the correct tension. Cases must be lubricated before full length sizing.

The RCBS seater dies for bottleneck cases will seat bullets correctly in full length sized cases or neck sized cases. These seater dies have a built-in crimp ring to enable you to crimp the case into the bullet if you wish to. The seater die is easily adjusted to crimp or not to crimp by raising or lowering the die position in the press.

Specifications:

* Material:
Polished and Heat Treated Steel
* Die Style: Full Length Sizing Dies
* Accessories: Plastic Storage Case
* Thread: Standard 7/8-inch-14 thread
* Warranty: Lifetime Guarantee from RCBS
* Manufactured to the tightest tolerances
* Hand-inspected twice before leaving the factory

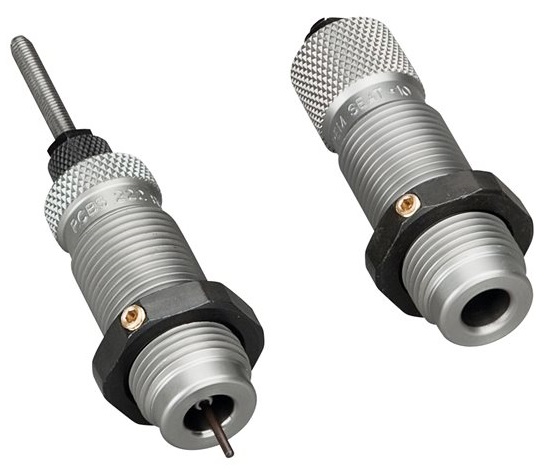

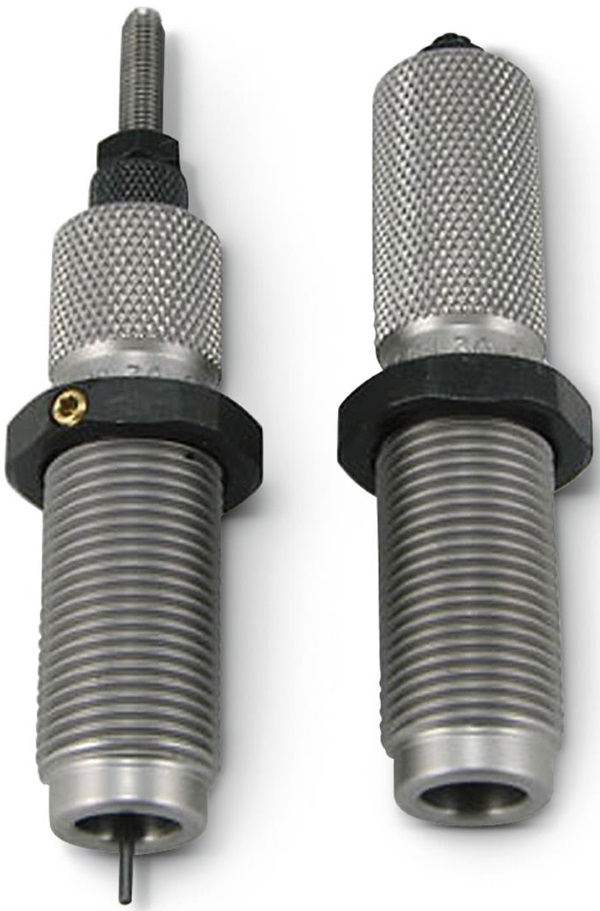

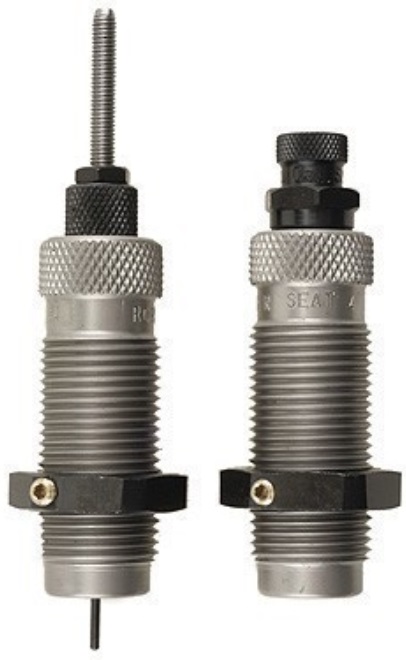

More Pictures of the RCBS® Full-Length Die Sets
