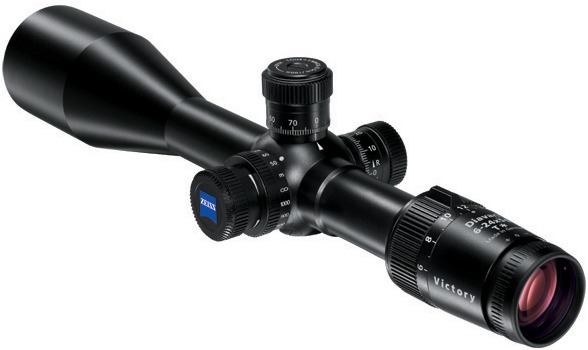

Zeiss Diavari 6-24x56 Riflescope

Zeiss FL Diavari 6-24x56mm Riflescope NZ$4288 (incl. GST)
Reticle: Quantity:

Code: ZEVD-5217899978
Reticles Available: 20 (Z-Plex), 43 illum, 60 illum, 78/Z7
Reticle in the 2nd image plane
Magnification: 6x - 24x
Effective Lens Diameter: 56 mm - 56 mm
Exit Pupil Diameter: 9.3 mm - 2.3 mm
Twilight Factor: 16.9 - 36.7
Field of View (ft/100 yards): 18.6 - 5.1
Diopter Range: +2/-3 dpt
Eye Relief (in): 3.54
Parallax-Free (yds): 55.0 m -
Square Adjustment Range (in/100 yds): 57.6
Adjustment per Click (in/100 yds): 1/4
Center Tube Diameter: 30 mm


Eye Piece Tube Diameter: 45 mm
Objective Tube Diameter: 62 mm
LotuTec®: yes
Nitrogen Filled: yes
Waterproof: 400 mbar
Functional Temperature Range: -13/+122 °F
Length: 14.84 in
Weight: 29.30 oz

Weight (illuminated): 30.36 oz

This is the ultimate scope for the varmint hunters and long-range target shooters: high power and FL glass which significantly reduces chromatic abberation with no color fringing. Lockaboe 1/4" MOA windage and elevation turrets included.

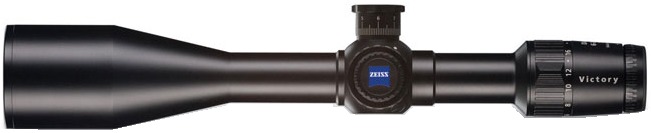

Straight View of the Zeiss FL Diavari 6-24x56mm Riflescope
Overview of Zeiss Victory FL Diavari Riflescopes

Victory Riflescopes - The premium line of riflescopes equipped with the most sophisticated ZEISS optics, state-of-the-art components, and highperformance features to meet the requirements of the most discriminating hunters and shooters. LotuTec® lens coating along with fully T* multicoating on all air-to-glass surfaces provides superior light transmission and optimum contrast, critical for twilight hunts. Large fields of view and precision adjustments get you on target quickly and accurately every time.

Victory Diavari FL Riflescopes - Designed for those whose hunting and shooting style requires the most precise shots from long distances, the Victory FL line is without rival. FL glass and LoutTec® coating visibly enhance optical performance, creating images that are sharper and more brilliant, with no color fringing, for uncompromised target acquisition from long range. With two innovative ballistic compensation optons -- BDC ballistic turret and Rapid-Z® -- Victory FL riflescopes are the ultimate long range solution for the most descriminating hunters and shooters.

Zeiss FL Diavari 6-24x56mm Reticles

Reticle 78 (Z7)
