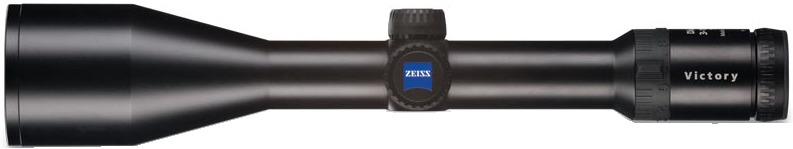

 Zeiss Diavari 3-12x56

Zeiss Victory Diavari 3-12x56mm Riflescope NZ$POA (incl. GST)
Reticle: Quantity:

Code: ZEVD-5217419943
Reticles Available: 4, 8, 42 non-illum and 40, 44, 60, 66 illuminated
Reticle in the 1st image plane

Zeiss Victory Diavari 3-12x56mm Riflescope NZ$3091 (incl. GST)
Reticle: Quantity:

Code: ZEVD-5215459920
Reticles Available:
20 (Z-Plex)

Reticle in the 2nd image plane

Zeiss Victory Diavari 3-12x56mm Riflescope NZ$4053 (incl. GST)
Reticle: Quantity:

Code: ZEVD-5217439976
Reticles Available:

Illuminated Reticle in the 2nd image plane

Extra large 56mm objective lens combined with a wide power range gives this all-around scope superb light gathering ability in fading twilight. The perfect riflescope for stand hunting or any other hunting situation in low light. Also available with rail.


Magnification: 3.0x - 12.0x
Effective Lens Diameter: 44.0 mm - 56.0 mm
Exit Pupil Diameter: 14.7 mm - 4.7 mm
Twilight Factor: 8.5 - 25.9
Field of View (ft/100 yards): 37.5 - 10.5
Diopter Range: +2/-3 dpt
Eye Relief (in): 3.54
Parallax-Free (yds): 109.4
Square Adjustment Range (in/100 yds): 36.7
Adjustment per Click (in/100 yds): 1/3 MOA
Center Tube Diameter: 30 mm
Eye Piece Tube Diameter: 40 mm
Objective Tube Diameter: 62 mm
LotuTec®: yes
Nitrogen Filled: yes
Waterproof: 400 mbar
Functional Temperature Range: -13/+122 °F
Length: 13.54 in
Weight: 18.38 oz

Weight (illuminated): 19.37 oz

Overview of Zeiss Victory Diavari Riflescopes

Victory Riflescopes - The premium line of riflescopes equipped with the most sophisticated ZEISS optics, state-of-the-art components, and highperformance features to meet the requirements of the most discriminating hunters and shooters. LotuTec® lens coating along with fully T* multicoating on all air-to-glass surfaces provides superior light transmission and optimum contrast, critical for twilight hunts. Large fields of view and precision adjustments get you on target quickly and accurately every time.

Victory Diavari Riflescopes - With a wide model range that covers every hunting style and situation, Victory Diavari riflescopes offer the highest possible level of accuracy and clarity. All Victory Diavari riflescopes feature brilliant optical performance, elegant ergonomic design, LotuTec® lens coating, ZEISS T* multi-coating, and are available with either standard reticles or illuminated reticles for outstanding performance in twilight and low light conditions. Models with an objective size of 50 mm or larger offer a choice between the reticle in the first or second image plane.

Zeiss Diavari 3-12x56mm Reticles

Reticle 76 (Z5)
